77363 Seal, Shaft LX Jet Pump

Name: 77363 Seal, Shaft LX Jet Pump
Brand: Watkins
SKU: 77363
Price: 30.95 USD
Availability: InStock

$30.95

This part is a replacement shaft seal for select hot tubs and Endless Pool models with the LX jet pump. The seal kit is used to halt water from leaking into the rotating pump.

Usually Ships Within 2 Business Days

Buy with Confidence:

Customers who bought this also bought

72996 Wet End Kit for Wavemaster 9000

$177.95

Out of stock

73370 Light Lens

$38.58

Out of stock

Product Description

Shaft Seal

This part is a replacement shaft seal for select hot tubs and Endless Pool models with the LX jet pump. The seal kit is used to halt water from leaking into the rotating pump.

For the best results, handle with care when installing. Compatible with 1997 to current Hot Spring, Hot Spot, Limelight, Solana, Tiger River and Endless Pool models.

*Check specs section for full list of compatible models and years.

Product Specification

Watkins

Make	Model	Date Range
Endless Pools	E2000-58	2017-Current
Endless Pools	E500-52	2016-Current
Endless Pools	E500-58	2016-Current
Endless Pools	E700-52	2016-Current
Endless Pools	E700-58	2016-Current
Endless Pools	X200-50	2016-Current
Endless Pools	X500-50	2016-Current

Item	Decsription	Part #
1	JET PUMP, 1.65HP 1SP DUAL 60HZ	71699
2	GROMMET, JET PUMP BASE 97-C	72349
3	WASHER FLT 5/16X3/4 SS	30413
4	SCW 1/4-20X1-1/2 MS PH PLP SS	30018
5	POWER CORD	N/A
6	EXHAUST HOSE, JET PUMP 01-C	72344
7a	UNION, PUMP	1119401
7b	2" SOC.90 DEG SWEEP PUMP UNION	301488
7c	429-020 CPLG 2IN SLXSL	30665
7d	O-RING, COMPRESSION FITTING	34447
7e	HOSE, PVC FLEX 2" X 36"	70308
7f	FITTING COMPRESS 2 W/O-RING	71036
7g	FITTING COMPRESS 2X1.5 W/ORING	71037
7h	FITTING COMPRE 1.5W/O-RNG	71038
7i	SPLIT NUT, 2" JET PUMP	72072
8a	SHAFT SEAL ASSEMBLY	71447
8b	SEAL, SHAFT LX JET PUMP #3536	77363
9a	ADAPTER 1/2IN HOSE 0675-063	33732
9b	ADAPTER ELL, 1/4-MIPT 1/2-BARB	39438
10a	WET END 1.65 HP 60HZ ST D	72994
10b	WET END 1.5/1.65 HP 60 HZ L-03	77711

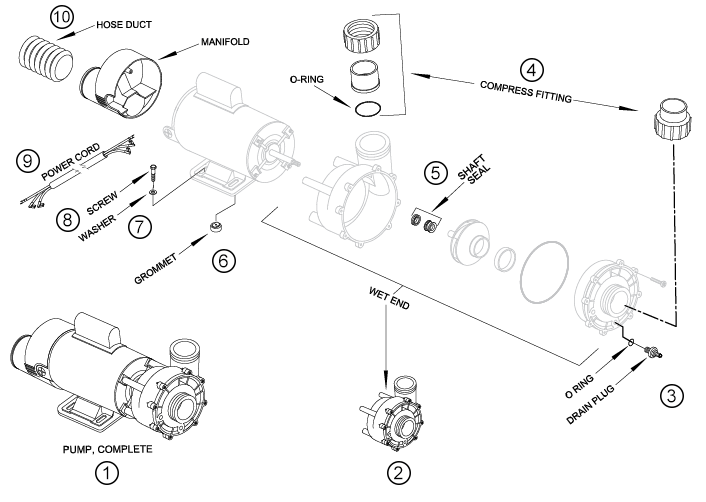

Item	Description	Part #
1	JET PUMP, 2.5HP 1SP 230V 60HZ	72196
2A	WET END 2.5 HP 60HZ ST D	72996
2B	WET END 2.5 HP 60 HZ, L-03	77713
3	DRAIN FITTING, JET PUMP 1/4IN	32267
4A	UNION, PUMP	1119401
4B	2" SOC.90 DEG SWEEP PUMP UNION	301488
4C	429-020 CPLG 2IN SLXSL	30665
4D	O-RING, COMPRESSION FITTING	34447
4E	HOSE, PVC FLEX 2" X 36"	70308
4F	ITTING COMPRESS 2 W/O-RING	71036
4G	FITTING COMPRESS 2X1.5 W/ORING	71037
4H	FITTING COMPRE 1.5W/O-RNG	71038
4I	SPLIT NUT, 2" JET PUMP	72072
5A	SHAFT SEAL ASSEMBLY	71447
5B	SEAL, SHAFT LX JET PUMP #3536	77363
6	GROMMET, JET PUMP BASE 97-C	72349
7	WASHER FLT 5/16X3/4 SS	30413
8	SCW 1/4-20X1-1/2 MS PH PLP SS	30018
9	KIT, PUMP CORD 14/3 1SPD STRS	72462
10	EXHAUST HOSE, JET PUMP 01-C	72344
